Oilfield
Oilfield Products
Scan-Pac offers a complete line of brake blocks and draw-works sets specifically for most popular drilling and well service rigs. Scan-Pac oilfield products, through one challenging application after another, have earned the reputation of exceptional performance and consistent quality. Scan-Pac also offers a complete line of molded cathead and gear tooth clutch facings. The line of Green Gripper Oilfield Products by Scan-Pac have become the industry standard of performance, quality and value.

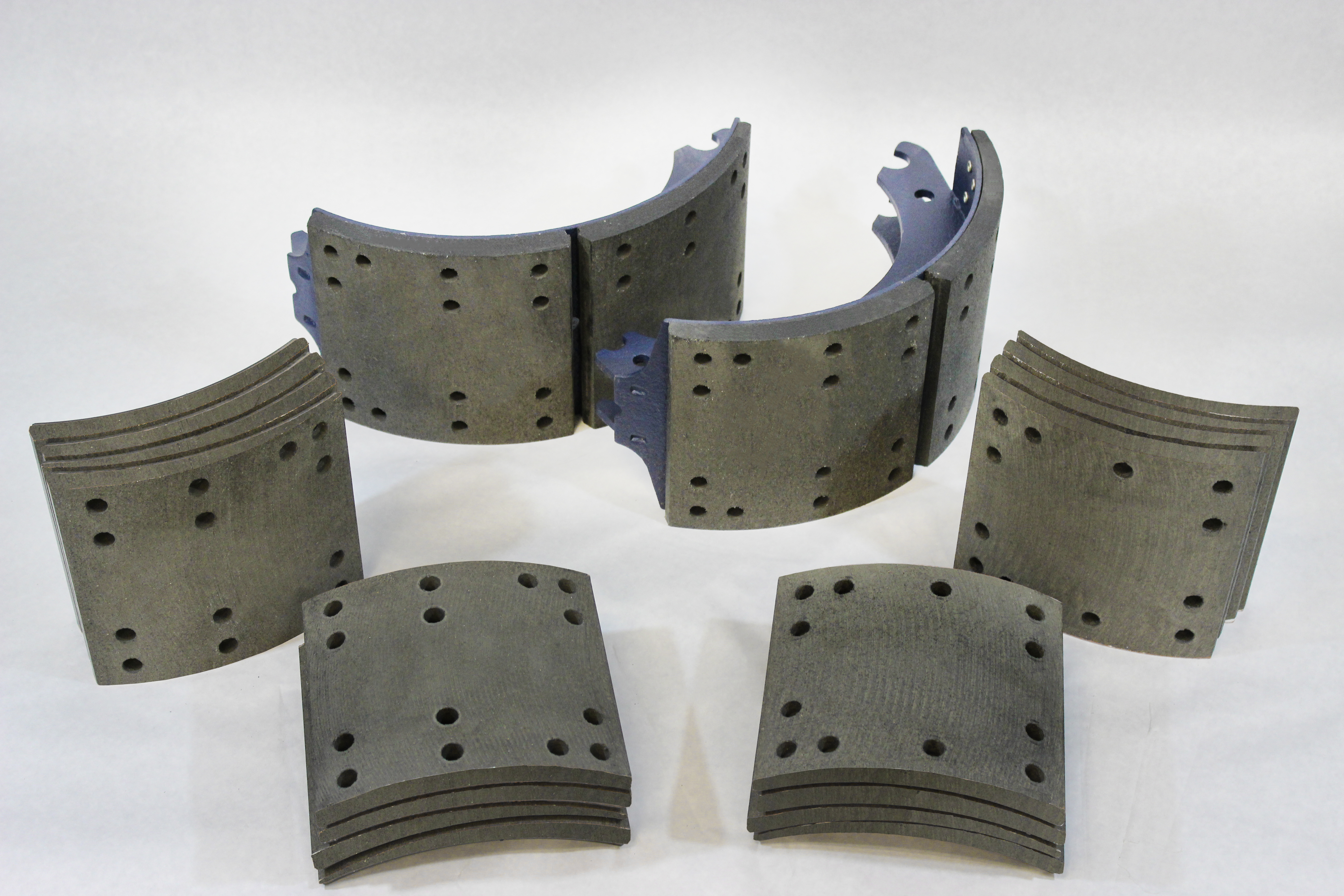

Oilfield Brake blocks & Bands
Scan-Pac offers a variety of facings to meet the most severe oilfield and industrial applications. Both ID and OD geartooth facings are produced in either RF38 standard duty medium friction material and in RF52 high strength high torque material, but upon request can be molded in most Scan-Pac materials. The clutch insulator plates are molded from a specially developed non-metallic formulation which exhibits excellent insulating properties while presenting a smooth tough surface in your critical clutch applications. Cathead facings are available in standard manufacturer configurations , in either an RF formulation or GGW woven material and can be readily cross-referenced by a Scan-Pac technical representative.
- The tightly woven and dense construction provides premium life characteristics
- Specifically designed for holding and stopping with the least amount of abrasion
- Very low abrasive fibers for very long life and inserted wire construction for superior strength
- Provides a constant friction level with excellent fade resistance
- The lining is unaffected by oil, grease or water
- Proven reliability and fastest delivery in the industry including hardware and plugs
- Eliminates the liability associated with Asbestos containing products
Oilfield Clutch Facings

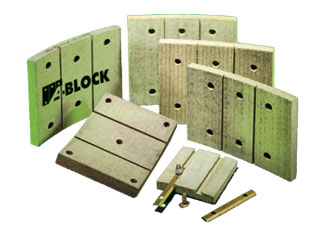

The new "A-Block" by Scan-Pac is the only premium non-asbestos woven material that reduces downtime and repair costs. It has been developed specifically for the oil field for use on draw-works and well servicing rigs. Extensive field evaluations confirm that this product provides outstanding performance in this demanding application area. The "A-Block" exhibits smooth, long-lasting trouble-free service with excellent seat-in. Further enhancements have been introduced which significantly reduce abrasion on rims and flanges. The resulting "A-Block" provides the oil field with an upgrade product with premium performance.
- Available for most industrial applications
- Both ID and OD geartooth facings available in most sizes and thicknesses
- Most formulations can be molded to special internal or external configurations
- Examples of use: construction or mining machinery clutches, pumping & irrigation drives, punch press brakes & clutches, overload and tensioning devices, winches & hoists, other industrial clutch & brake applications
Technical Data Sheets
| Material Number | Coefficient of Friction | Wear Rate (in3/hp-hr) |
|---|---|---|
| A-Block | 0.50 - medium to high | 0.006 |
| Gemini Oilfield Woven | 0.54 - high | 0.005 |
| GGW | 0.52 - high | 0.005 |
| RF-18 | 0.2 - low | 0.005 |
| RF-38 | 0.44 - medium | 0.005 |
| RF-425 | 0.43 - medium | 0.005 |
| RF-52 | 0.58 - high | 0.007 |
| RF-71 | 0.55 - high | 0.004 |
| RF-72 | 0.52 - high | 0.005 |
| All values reported above are typical values from product testing, and are reported as a means of reference. Individual testing should be done to determine actual results, tested at specific conditions. Data should not be used for material specification purposes. | ||
Product List

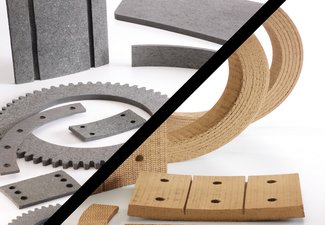

Gemini
Scan-Pac’s Gemini woven, rigid molded, and extruded linings were designed to satisfy the price conscious customer without sacrificing the quality and performance that you have come to expect from Scan-Pac materials.

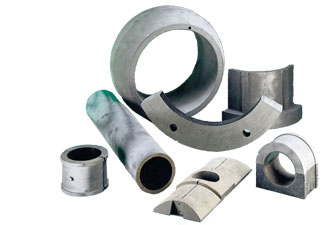

Gatke
Our Gatke Phenolic bushings, bearings, and wear plates were designed to operate in some of the harshest applications you will find.
Oilfield
Scan-Pac’s oilfield brake blocks, disc pads, and PTO clutch facings are used extensively on oilfield workover and drilling rigs.
Flexible
Scan-Pac offers flexible molded, extruded, and woven flexible linings for a wide range of industrial applications.

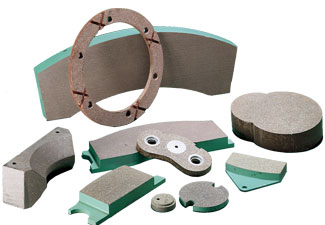

Rigid Molded
