Flexible

Flexible Linings Overview

Scan-Pac offers a complete line of Woven and Calendared flexible lining material in flat sheet and roll form. Green Gripper Woven (GGW) has become the standard for heavy-duty industrial applications throughout a wide range of industries. In 2009 the company released Gemini woven which was developed for the price conscious customer while maintaining a high level of quality. Scan-Pac is also the leading manufacturer of calendared/sheeter Flexible Woven Materials linings. Calendared/sheeter lining material is strong, tough, smooth and consistent. The company also offers extruded linings as an economical alternative to calendared friction materials. Our Gemini-GX extruded lining has a high level of flexibility and cures easily when bonded to a mating drum, shoe or disc pad.

Flexible Lining Product Offerings

  • Green Gripper Woven (GGW)
  • Gemini Woven
  • 232AF Calendared
  • 242OR Calendared
  • Green Gripper Aramid (GGA) Calendared
  • Gemini-GX Extruded

Flexible Woven Materials

Scan-Pac offers a complete line of woven friction material in flat sheet, custom sizes, and extensive offering of roll sizes (width & thickness). Scan-Pac’s GGW and Gemini woven materials exhibits a consistent high friction level with a good wear rate and immediate and complete recovery provides superior performance in applications requiring flexible woven products.

  • High static friction
  • Easy to stock rolls of needed widths & thickness
  • Use for relining internal & external flexible full wrap band applications
  • Examples of use: Oil drill rigs, mine winches, mooring winches, elevators

Aramid

Scan-Pac Green Gripper Aramid (GGA) was developed to satisfy requirements for a product in the upper medium friction range, with extremely low abrasion, low rate of wear, and oil resistance. It contains no metal particles. It is available in semi-flexible rolls and in rigid cured shapes, both flat and curved. The standard thickness range is 1/32″ through 3/8″. Where greater thickness is required, it can be laminated using various types of backing stock and can be bonded to metal. With its low abrasion, GGA is currently being used against softer metal discs or drums, like copper alloys used in water cooled applications, resulting in low metal wear. It performs well both wet and dry. GGA is currently being used on magnetic brakes and clutches, tensioning devices, and clutch buttons with great success.

  • Wide thickness range – 1/32″ thru 3/8″
  • Furnished both semi-flexible (uncured) and rigid (cured)
  • Extremely low abrasiveness reduces metal wear
  • Usable in wet and dry applications
  • Good bondability
  • Adequate rivet holding strength
  • Smooth consistent friction
  • Low sensitivity to speed and pressure (stick/slip resistant)
  • Examples of use: Paper mill unwind and rewind stands, overload and slip applications, clutches and brakes, tensioning units

Flexible Calendared

Scan-Pac flexible sheeter products are offered in a variety of materials and are intended for light and medium duty service and where a flexible material is desired or required. All the sheeter materials are strong, tough, smooth and consistent.

  • General purpose materials
  • Medium friction level
  • Good fade resistance
  • Good wear characteristic
  • High tensile strength
  • Good for relining internal or external shoes or bands when rigid arced blocks of correct size are not available
  • Use for flexible full wrap band applications where use of shorter rigid segments is not available
  • Easy to stock rolls of needed width & thickness, then cut to length
  • Examples of use: Crane & shovel bands, overhead crane shoes, punch press brakes, hoisting equipment, farm machinery, antique & classic auto brakes, commercial fishing boats

Gemini-GX Extruded

Scan-Pac Gemini-GX Extruded material was developed to satisfy the price conscious consumer without sacrificing the quality you’ve come to expect from our products. Gemini-GX is an extruded material that offer a coefficient of friction of .40 and low wear rate (.003 inch^3 / hp-hr.). This material offers a high level of flexibility and cures easily when bonding to brake bands, shoes, or disc pads. GX has been extensively tested to ensure it will perform at a high level while offering a price savings.

Technical Data Sheets

Material Number Coefficient of Friction Wear Rate (in3/hp-hr)
230 AF – cured 0.44 – Medium 0.016
232 AF 0.44 – Medium 0.016
240 OR – cured 0.48 – Medium to High 0.019
242 OR 0.48 – Medium to High 0.023
725 AF – cured 0.27 – Low 0.007
725 AF – uncured 0.27 – Low 0.007
GGW 0.50 – High 0.005
GGA – cured 0.48 – Medium to High 0.011
GGA 0.45 – Medium to High 0.008
Gemini Woven Medium High – 0.51 0.005
Extruded-GX Medium – 0.43 0.002
All values reported above are typical values from product testing, and are reported as a means of reference. Individual testing should be done to determine actual results, tested at specific conditions. Data should not be used for material specification purposes.

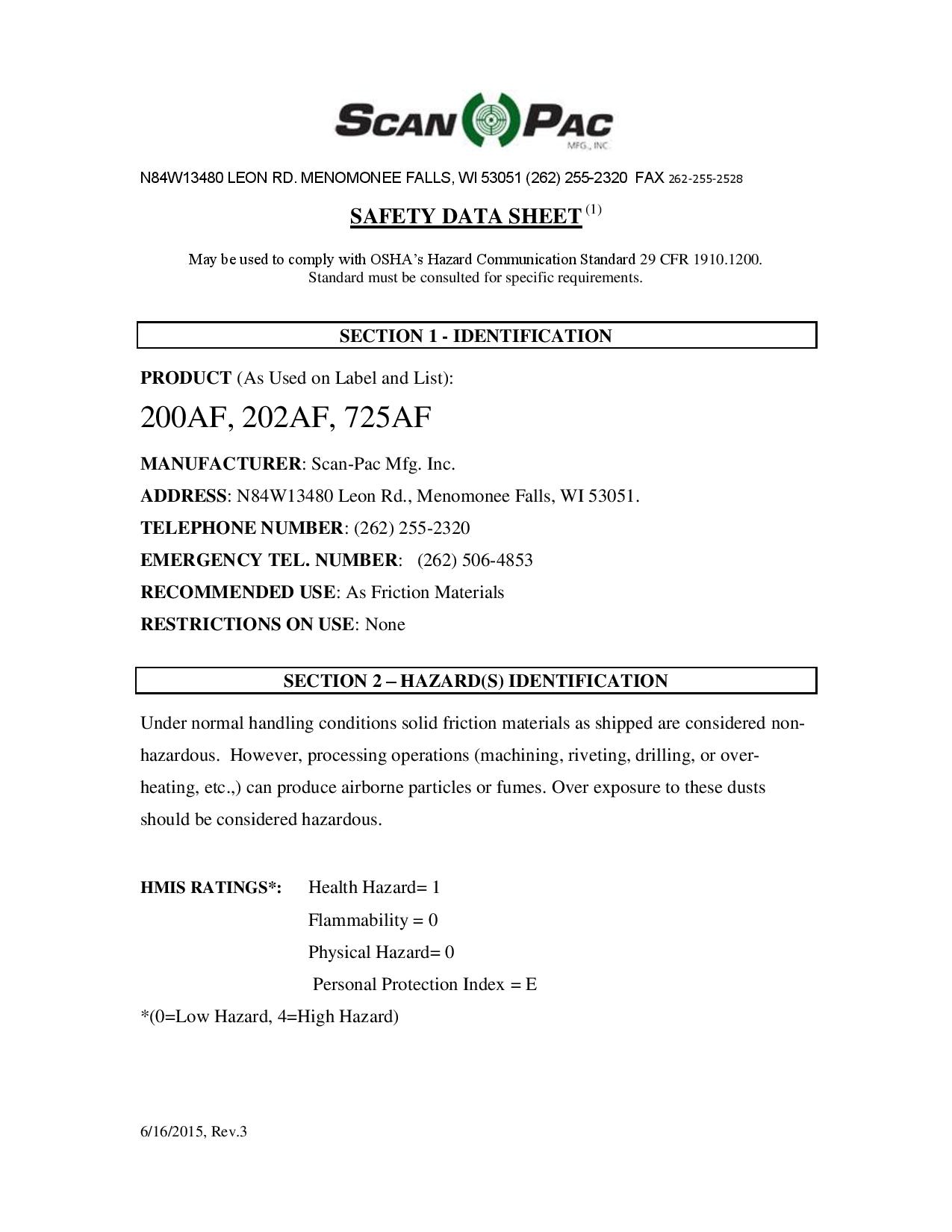

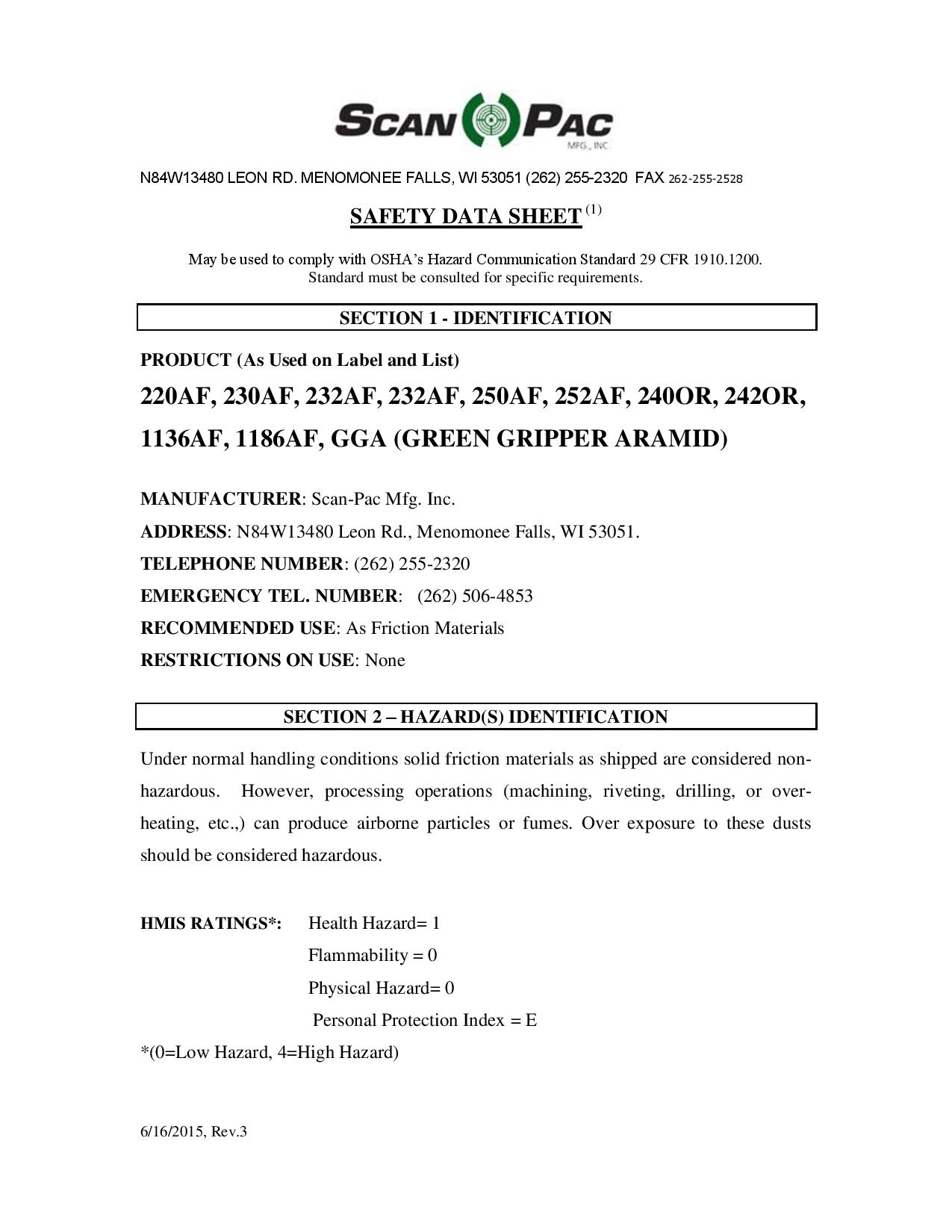

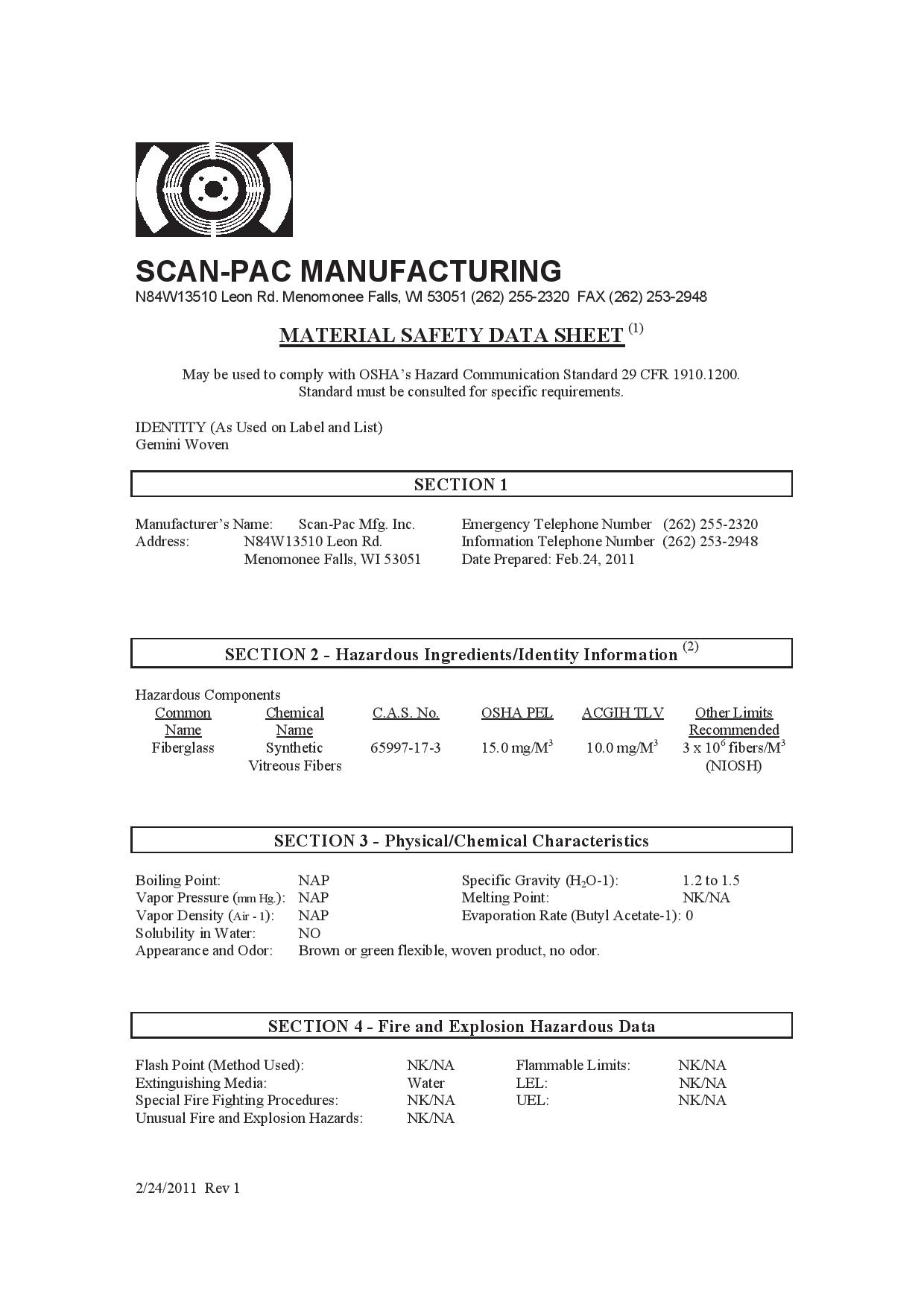

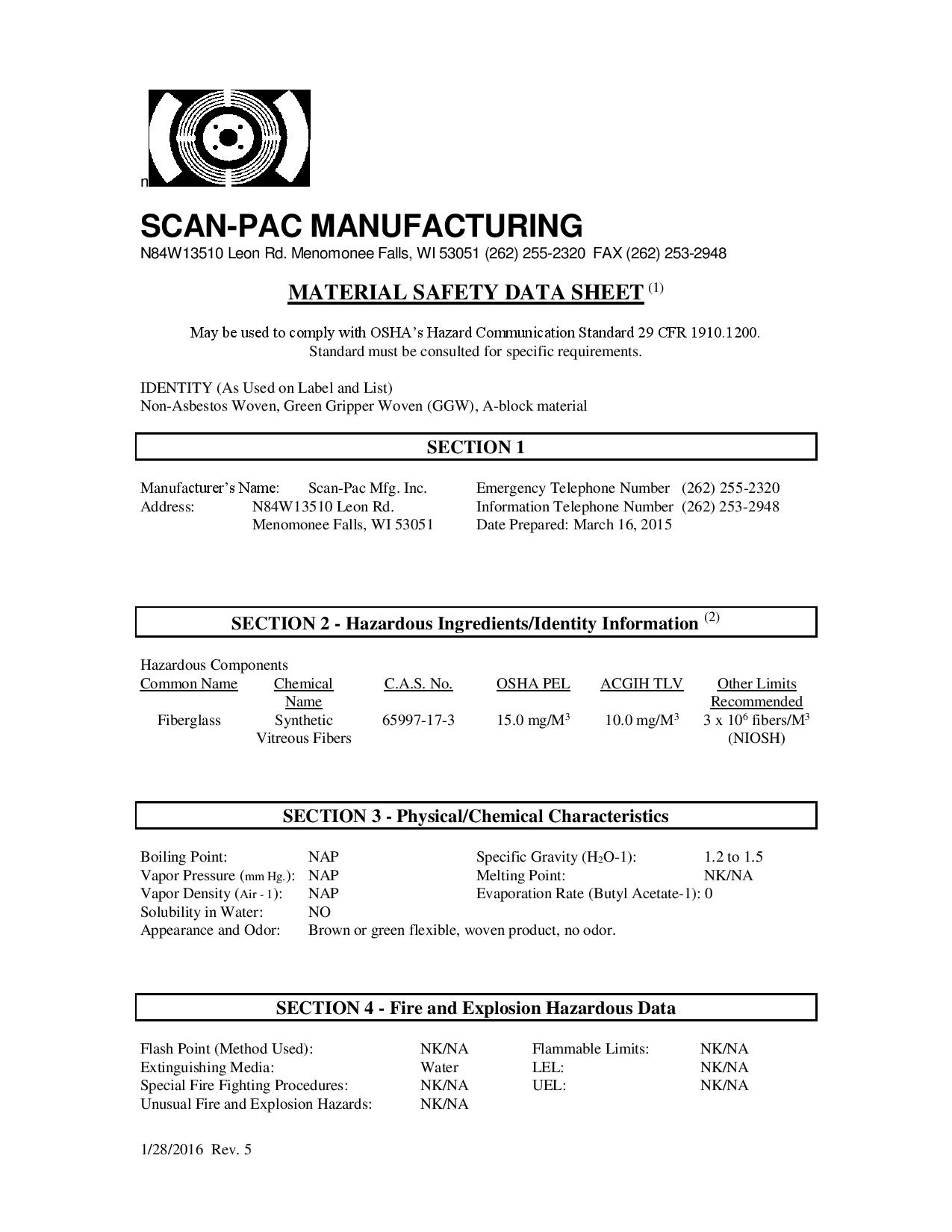

MSDS
